Blind Rivet Grip Range Chart

Rivet length 0 015 in.

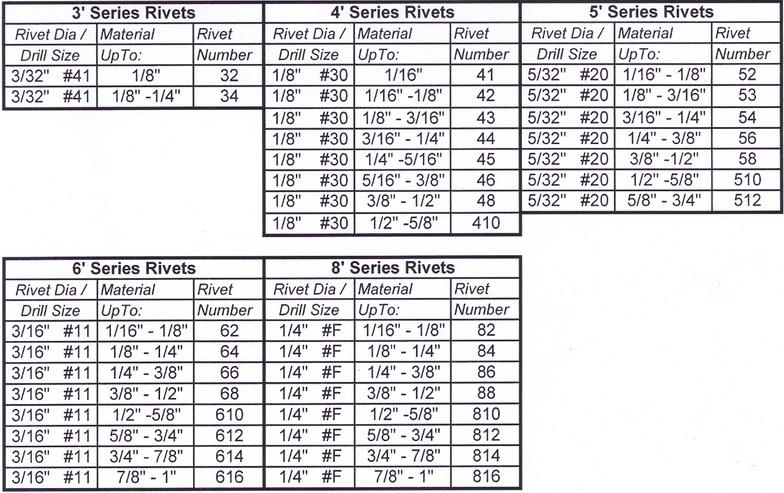

Blind rivet grip range chart.

Blind rivet nominal diameter rivet number length and grip range. Tri bulb rivets are segmented on the blind end allowing the sleeve to extend in three directions for a secure hold. Pop brand rivets are not certified for structural aerospace applications and such use is not recommended. Determine rivet diameter by strength needed for job.

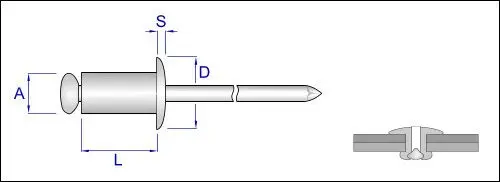

The hat length it what you are looking for. If the length of the hat is 1 2 the rivet has a 3 8 grip 375 also known as a 4 6 rivet. The grip range of the rivet will be shorter than the measured length. Closed end rivets help to create a seal to prevent air and moisture leakage.

The measured length will be 1 5x the rivet s grip range including the ball at the end of the rivet. In our catalog you will see rivet sizes notated in the form. You must select a rivet with a grip range that includes the work thickness required. 1 8 diameter 0 251 0 312 this is a rivet with a 1 8 inch diameter body and a grip range of 0 251 inches to 0 312 inches.

Measure the total thickness of the materials to be joined. Use aluminum rivets for lighter weight jobs and materials such as aluminum fabrics plastics leather etc. Multi grip rivets feature a wide grip range to accommodate different material thicknesses. Use steel rivets for heavy duty jobs and when riveting steel to steel.

Blind rivets are sized by a combination of two important dimensions.
